Merging spreadsheet or csv files into one dataframe - Part 3

Benvenuti again. Today we improve further our workflow started in Part 1 and expanded in Part 2. In these earlier episodes we used files with clean header-row-column format so the reading function could do its work with only filename provided. This time we have to deal with dirty file headers and unneeded columns, meaning that in order to read the data properly, these issues must be solved.

As always, we start with loading the packages we will use, continue with setting the working directory, get all filenames we want to read with the list.files() function and print our filenames to check them. In this episode we use the readxl package instead of readr, because our files have “.xlsx” extension.

library(dplyr)
library(readxl)
library(tibble)
library(stringr)
library(lubridate)
library(writexl)

setwd("path/to/Downloads2015")

filenames <- list.files(pattern = ".*xlsx$")

filenames

##  [1] "StopTheWar_2015.xlsx"    "StopTheWar20150121.xlsx"
##  [3] "StopTheWar20150224.xlsx" "StopTheWar20150318.xlsx"
##  [5] "StopTheWar20150417.xlsx" "StopTheWar20150505.xlsx"
##  [7] "StopTheWar20150528.xlsx" "StopTheWar20150707.xlsx"
##  [9] "StopTheWar20150724.xlsx" "StopTheWar20150813.xlsx"
## [11] "StopTheWar20150827.xlsx" "StopTheWar20150917.xlsx"
## [13] "StopTheWar20151009.xlsx" "StopTheWar20151106.xlsx"
## [15] "StopTheWar20151208.xlsx" "StopTheWar20160107.xlsx"
## [17] "T-1000_2015.xlsx"        "T-1000_20150121.xlsx"
## [19] "T-1000_20150224.xlsx"    "T-1000_20150318.xlsx"
## [21] "T-1000_20150417.xlsx"    "T-1000_20150505.xlsx"
## [23] "T-1000_20150528.xlsx"    "T-1000_20150702.xlsx"
## [25] "T-1000_20150723.xlsx"    "T-1000_20150812.xlsx"
## [27] "T-1000_20150826.xlsx"    "T-1000_20150917.xlsx"
## [29] "T-1000_20151009.xlsx"    "T-1000_20151106.xlsx"
## [31] "T-1000_20151208.xlsx"    "T-1000_20160107.xlsx"

We have two series of files with device names “StopTheWar” and “T-1000” and we glance at one of each in Excel to get some information before reading.

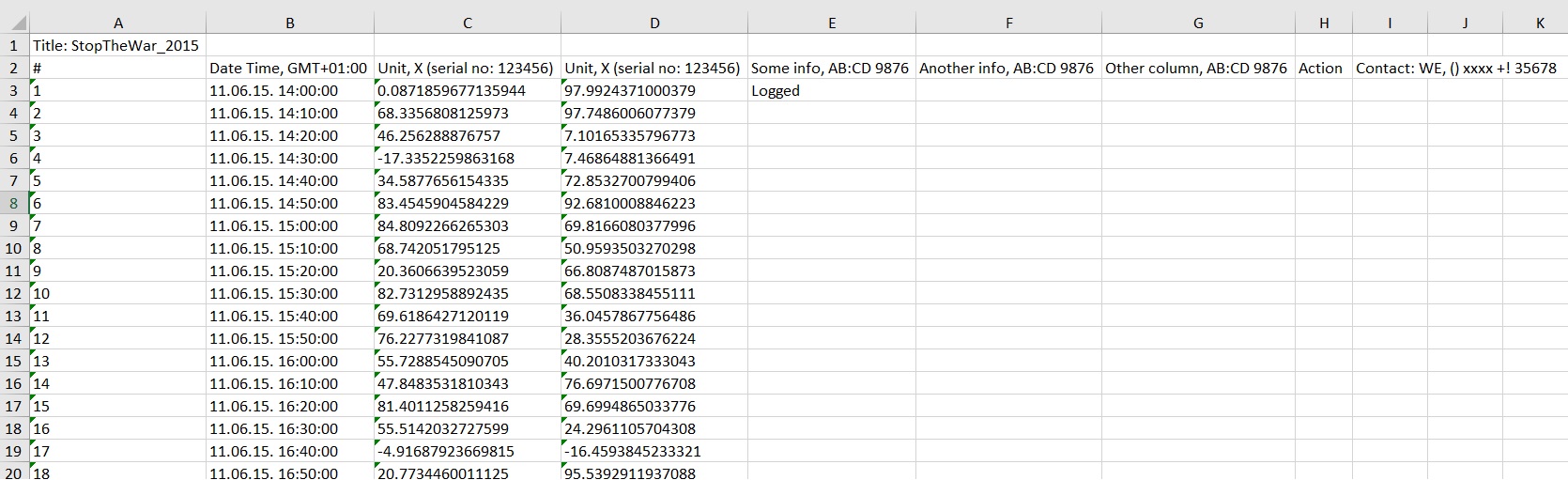

In the “StopTheWar” files there are 9 columns with deliberately idiot and long names, similarly to those I had to deal with in my work. Some columns seem to have only the name because values occur only sporadically in them. There is also a title in the very first row so column names are in the second. Reading these files without specifying the first row to skip would result in a data.frame with the first column named after the title and the rest like “…2” and “…3” as the function couldn’t find more names in the first row where column names should be by default. Additionally, every column would have character type despite we have a datetime and some numeric columns, because this way our original column names are considered as text values, forcing the the whole column into character type, since data type of values in the same column cannot differ, as we’ll see. Let’s check the other type of files.



In the “T-1000” files we have two more columns filled with numeric values, because they are from a different kind of device. Note that in both types the name of these numeric columns starts with “Unit”, followed by “X” in “StopTheWar” and “Y” in “T-1000”, referring to the unit of measurement. These are fake names (surprisingly, in these fake files), but based on real ones, and the point is that the columns have standard naming with only small differences. And we are going to use these differences in our reading loop to distinguish between the two types of files.

As in the previous parts we continue with defining objects needed for our loop. First we create and print the logger_names vector. The regex pattern in str_replace() was explained in Part 2.

logger_names <- unique(str_replace(filenames, "([^_]+)(?:_)*\\d{8}.+", "\\1"))

logger_names

## [1] "StopTheWar_2015.xlsx" "StopTheWar"           "T-1000_2015.xlsx"
## [4] "T-1000"

Then we get the actual_year, using this vector in make_datetime() functions when creating the one column real_time for the whole calendar year. In these files we have 10 minute time intervals so we set the “by” argument representing the desired time step of seq.POSIXt() to 600 seconds.

actual_year <- as.integer(str_extract(getwd(), "\\d{4}"))

real_time <- as_tibble_col(seq.POSIXt(make_datetime(actual_year, 1, 1, 0, 0, 0),
                                  make_datetime(actual_year, 12, 31, 23, 55, 0), 600),
                       column_name = "Datetime")

After these now familiar steps, let’s check what happens if we read a file without defining further arguments in read_xlsx().

a_t_1000_file <- read_xlsx("T-1000_20150318.xlsx")

## New names:
## * `` -> ...2
## * `` -> ...3
## * `` -> ...4
## * `` -> ...5
## * `` -> ...6
## * ...

head(a_t_1000_file)

## # A tibble: 6 x 11
##   `Title: T-1000__~` ...2  ...3  ...4  ...5  ...6  ...7  ...8  ...9  ...10 ...11
##   <chr>              <chr> <chr> <chr> <chr> <chr> <chr> <chr> <chr> <chr> <chr>
## 1 #                  Date~ Unit~ Unit~ Unit~ Unit~ Some~ Anot~ Othe~ Acti~ Cont~
## 2 1                  02.2~ 85.6~ 7.17~ 35.2~ 90.4~ <NA>  <NA>  <NA>  <NA>  <NA>
## 3 3                  02.2~ 23.0~ 62.3~ 10.1~ -3.5~ <NA>  <NA>  <NA>  <NA>  <NA>
## 4 5                  02.2~ 65.5~ 99.4~ 36.7~ 13.0~ <NA>  <NA>  <NA>  <NA>  <NA>
## 5 7                  02.2~ 97.4~ 94.9~ 66.4~ 85.7~ <NA>  <NA>  <NA>  <NA>  <NA>
## 6 9                  02.2~ 75.5~ 68.1~ 24.8~ 95.7~ <NA>  <NA>  <NA>  <NA>  <NA>

So we have these above mentioned artificial new column names, indicated already in the function message, and character data types. We have to get rid of our first row and thus enable the function to recognize the real column names and data types. In addition to that, we have some superfluous columns like the first one with measurement number, which too can be excluded in this step. In fact, only the datetime and columns whose name starts with “Unit” are needed.


Loop.
In this occasion we introduce the pipe “%>%” from the magrittr package (loaded with dplyr) into the loop to keep our code shorter. The behavior of this pipe can be explained like it considers what is before the pipe as the first argument of the following function (after the “%>%”). It means that functions in a pipeline miss their first argument, typically a data.frame to operate on, making these longer scripts more readable and less error-prone.

As previously, we define the files_for_one_logger, followed by initiating an empty list_for_dataframes, then an inner loop over files_for_one_logger to read the files into the list as data.frames and binding their rows into a combined_df, then left_join() it with real_time to get our final_df that we export them into files with the write_xlsx() function from the writexl package using logger_names and actual_year to set fitting names for the files.

To solve the described header-column problems we set the “skip” argument to 1 in read_xlsx() to omit the first row and start reading from the second, then pipe a few cleaning steps after this function. In this case our columns can be identified by the first part of their name, so we give the appropriate strings “Date” and “Unit” to the helper function starts_with() inside select() to keep only columns needed. With rename()we give its proper name to Datetime, choosing the column again with starts_with(). For the other columns we give suitable names with rename_at(), applying starts_with() once more, nested inside vars(), then str_replace() inside funs() to replace the whole column name with its relevant part. After that we use mdy_hms() from lubridate inside a mutate() function to convert our Datetime column into “POSIXct” and “POSIXt”, and mutate_if() to turn the remaining character type columns into numeric.

Because of the automatic naming of read_xlsx(), there should be a lot of warnings after running this loop, but we disabled warnings for this case to avoid getting overwhelmed by these messages.

for (name in seq_along(logger_names)){

  files_for_one_logger <- list.files(pattern = str_c("^", logger_names[name], ".*.xlsx"))

  list_for_dataframes <- list()

  for (i in seq_along(files_for_one_logger)) {
    list_for_dataframes[[i]] <- read_xlsx(files_for_one_logger[i], skip = 1) %>%
  select(starts_with(c("Date", "Unit"))) %>%
  rename(Datetime=starts_with("Date")) %>%
  rename_at(vars(starts_with("Unit")), funs(str_replace(., ".*(Sensor_\\d)", "\\1"))) %>%
  mutate(Datetime=mdy_hms(Datetime)) %>%
  mutate_if(is.character, as.numeric)
  }

  combined_df <- bind_rows(list_for_dataframes)

  final_df <- left_join(real_time, combined_df, by="Datetime")

  write_xlsx(final_df, str_c(logger_names[name], "_", actual_year, ".xlsx"))

 rm(combined_df, final_df, i, name, files_for_one_logger)

}

Finito.
To be continued with datetime issues in Part 4.

Ci vediamo!
